As the most professional Isuzu Fire truck factory, the core design of the Isuzu NPR water foam fire truck is to integrate a foam fire extinguishing system into a water tanker fire truck, forming a composite fire extinguishing equipment that can spray both water and foam. It can independently extinguish fires; deliver water or foam mixture to other equipment; and is suitable for operations in arid and water-scarce areas.

★ Techncial Specification

All fire trucks from CS trucks, 100% based on customer requirements

Capacity	Engine model	Water	Foam	Fire Pump	Fire Monitor
2,500L	ISUZU 4HK1 / 190HP	2,500L	500L	CB10/40 Fire Pump	PL8/32

2026 offical ISUZU Fire truck cab chassis truck

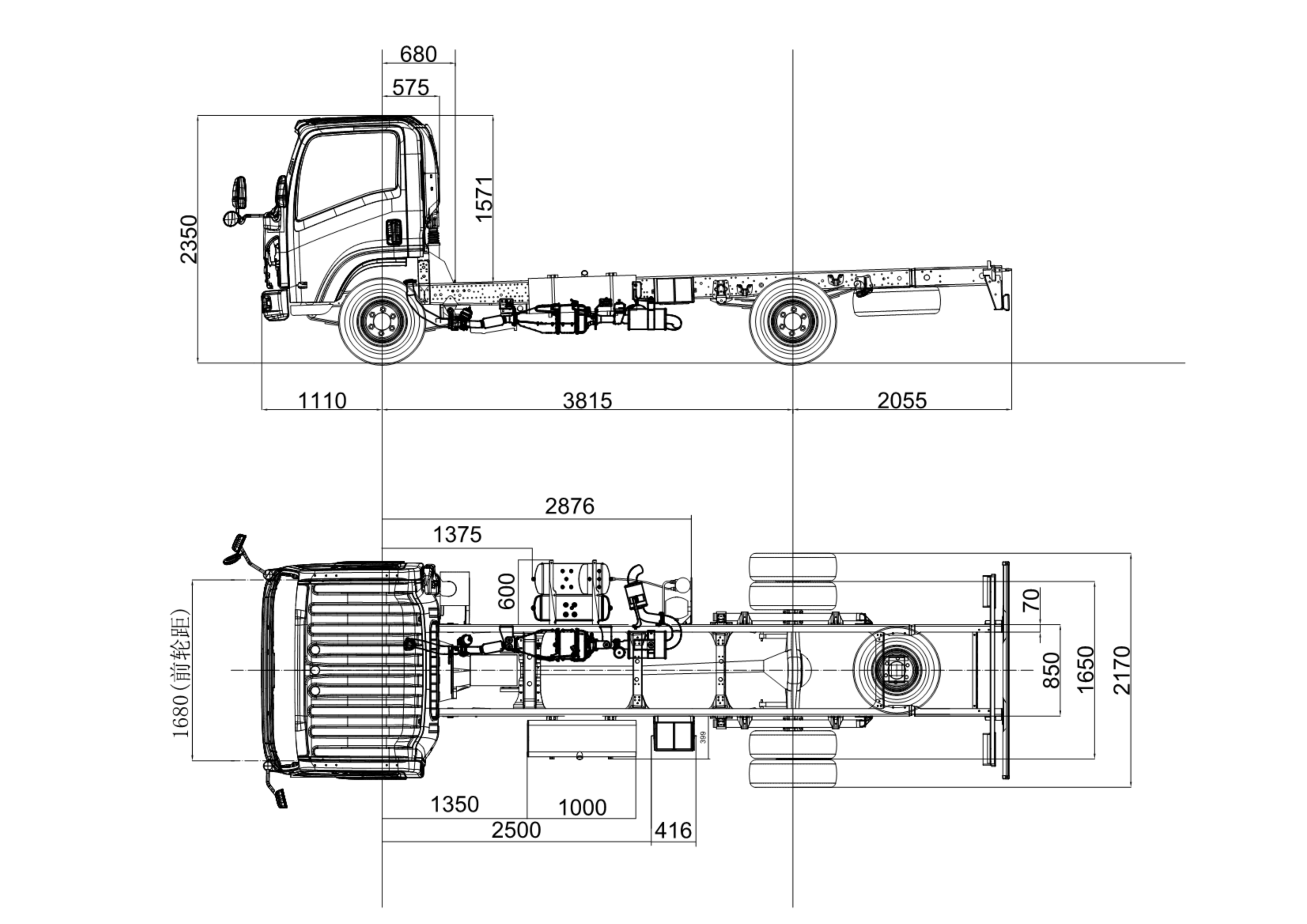

Isuzu Fire fighting vehicle truck chassis CAD drawing

2026 original fire truck chassis drawing

Item	Design Details of Isuzu Fire trucks
Design Core	Integrates a foam extinguishing system into a water tanker fire truck, forming a dual-capability fire-fighting vehicle capable of discharging both water and foam. Features include: • Independent fire suppression • Water or foam mixture supply to other equipment • Suitable for arid or water-scarce areas, enabling multi-functional use
Overall Design Concept	Designed to meet fire-fighting needs in workshops and surrounding areas, with enhanced capabilities for oil, electrical, and solid material fires; the vehicle consists of a chassis and specialized body equipment, emphasizing reliability, multi-functionality, and ease of operation
Chassis Selection	• Uses proven medium or heavy-duty type-II chassis • All-wheel drive recommended to improve mobility and traction in complex terrain

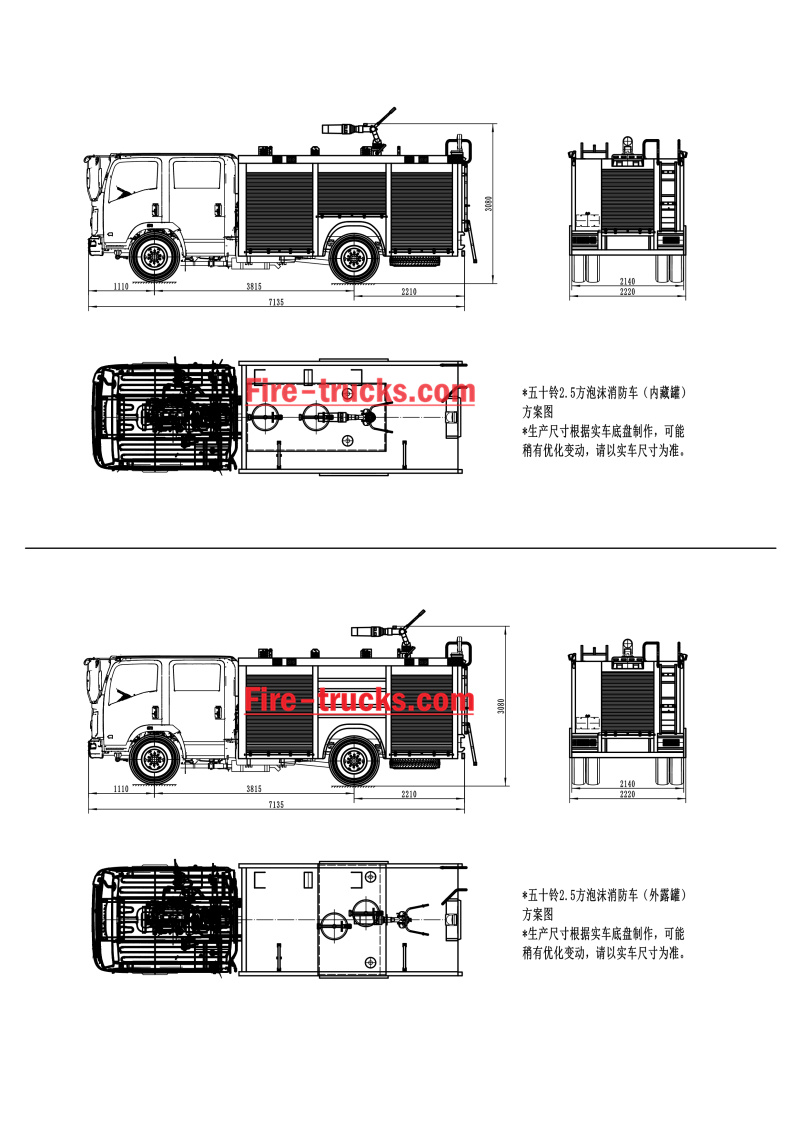

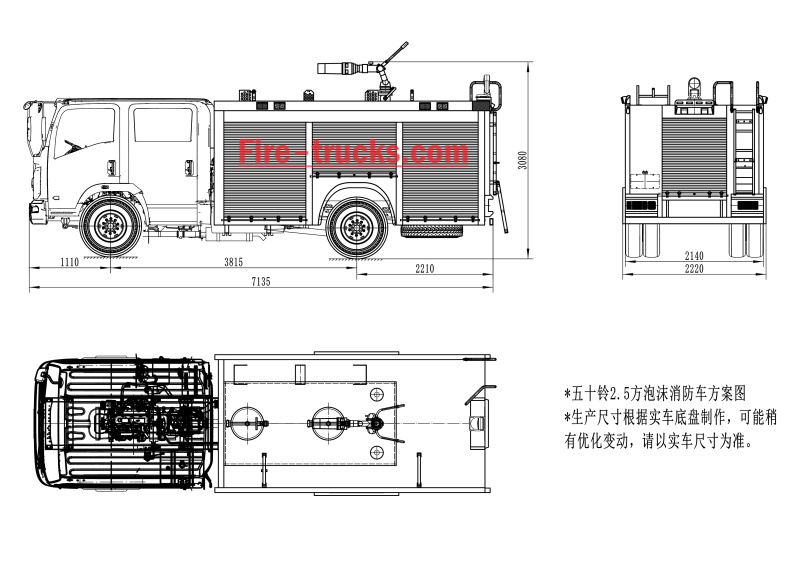

Isuzu 700P Foam water Fire truck CAD drawing

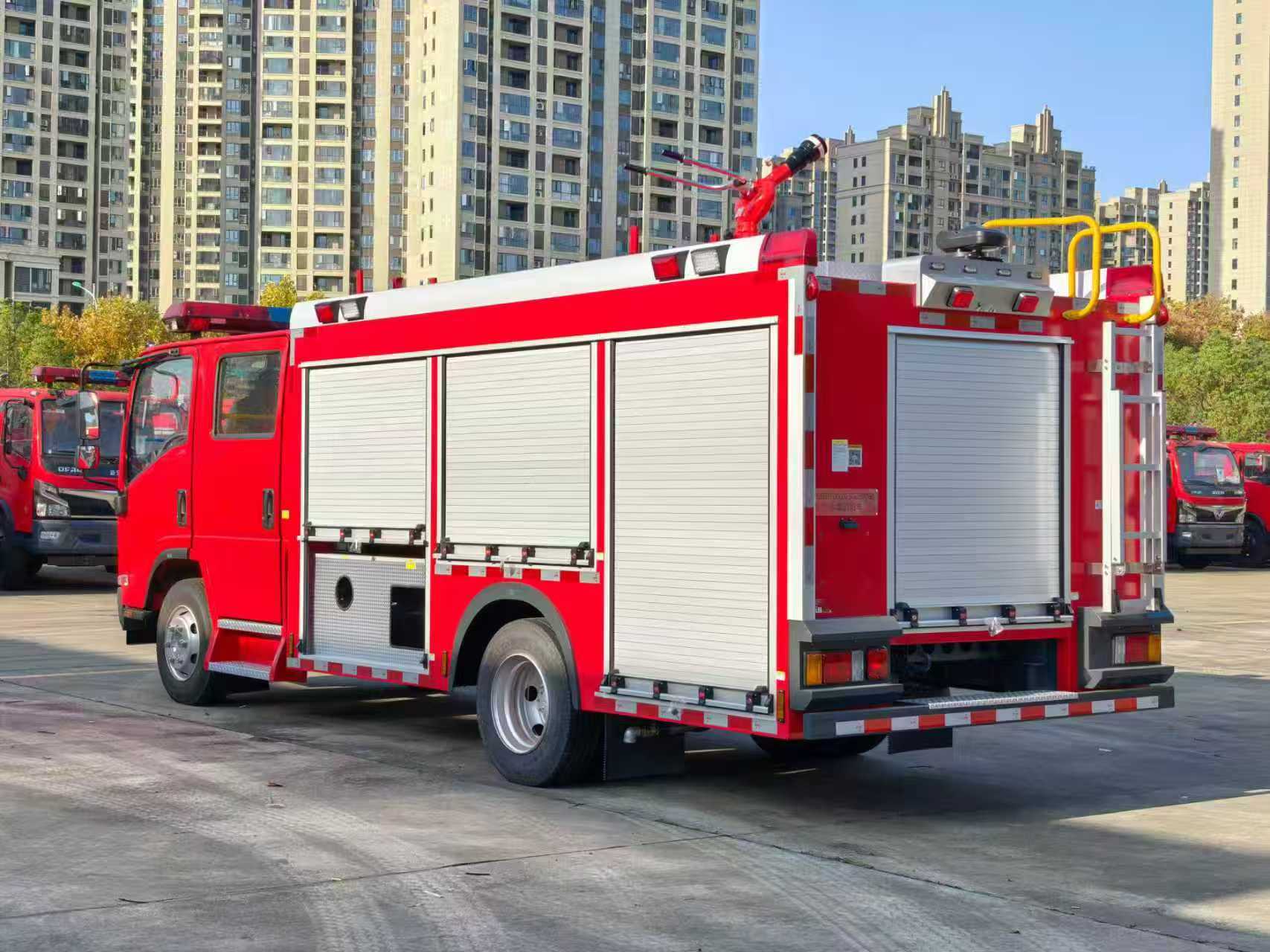

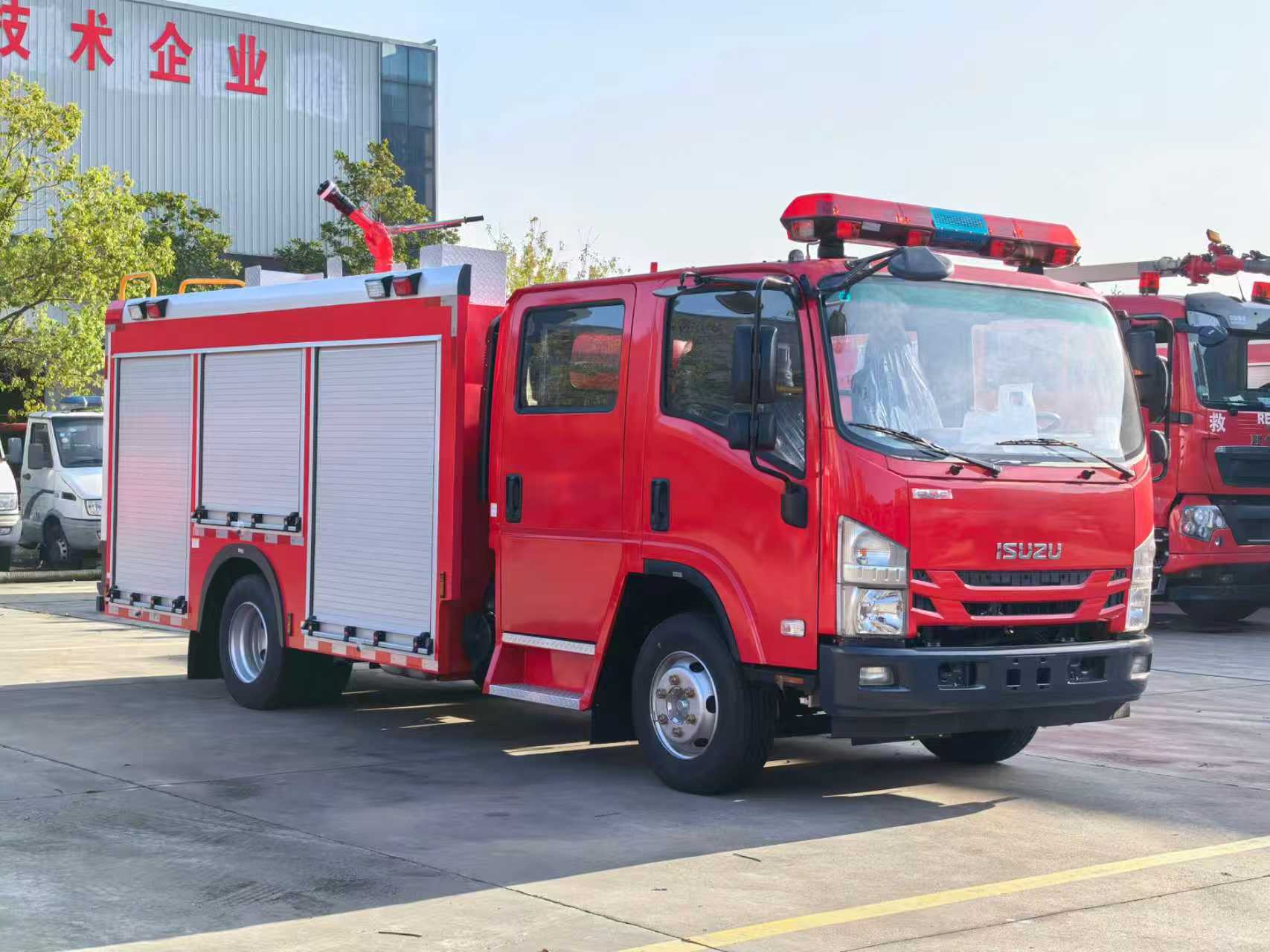

2026 NEW DESIGN OF ISUZU 700P Water Fire Trucks

Core System Components & Design Key Points

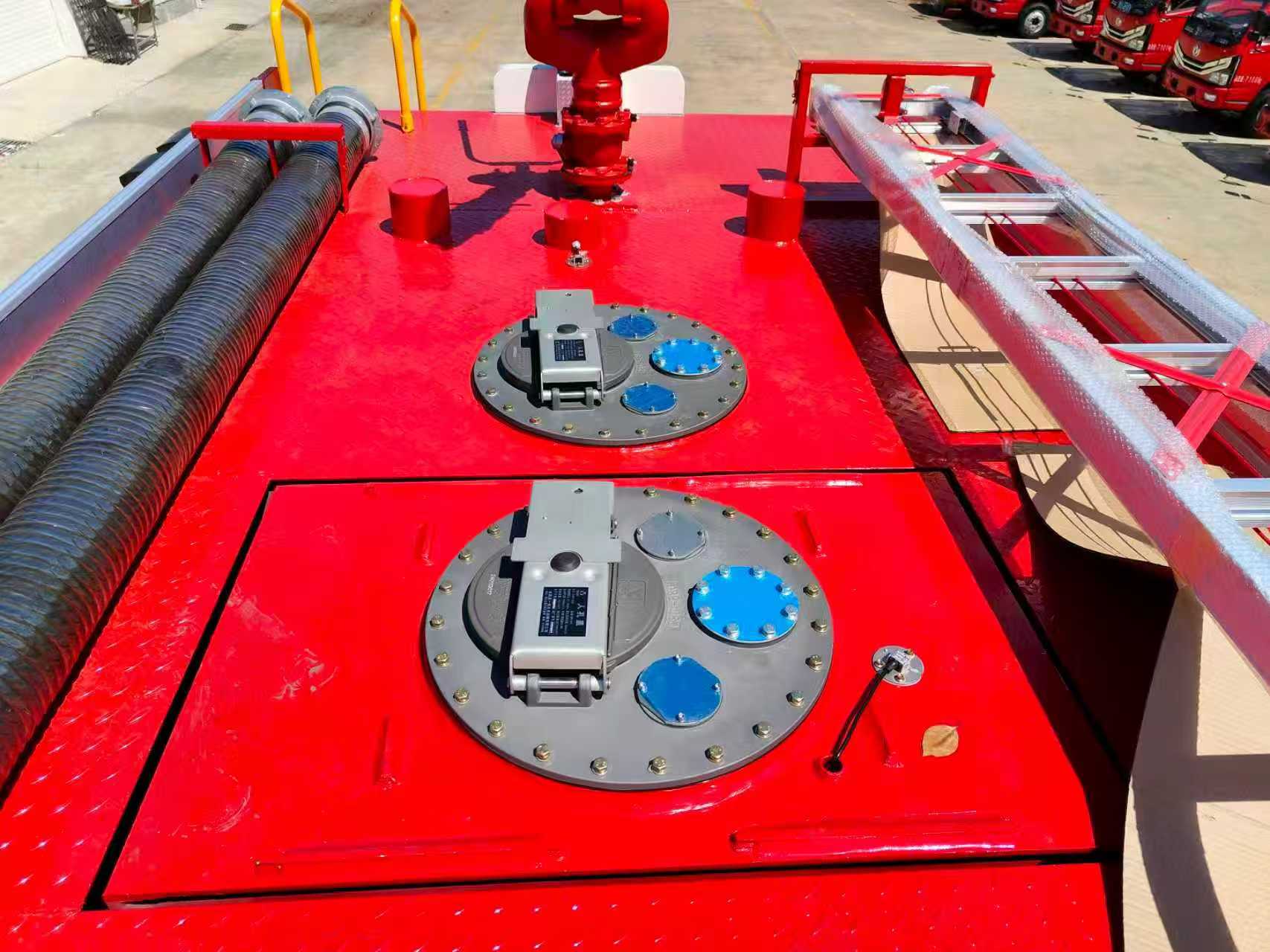

1. Water Tank & Foam Liquid Tank	• Material: Stainless steel, corrosion-resistant • Recommended capacity: Water tank 3000–5000L, foam liquid tank 300–600L • Structural optimization: Internal baffles separate water and foam chambers, switchable via connecting ports to single water tank mode, enabling multi-purpose use
2. Foam Proportioning System	• Uses balanced pressure proportioner (core component) to precisely mix water and foam concentrate at 3% or 6% ratios • Stable output unaffected by flow or pressure fluctuations, suitable for non-specialist operators • Equipped with external foam suction inlet for on-site replenishment

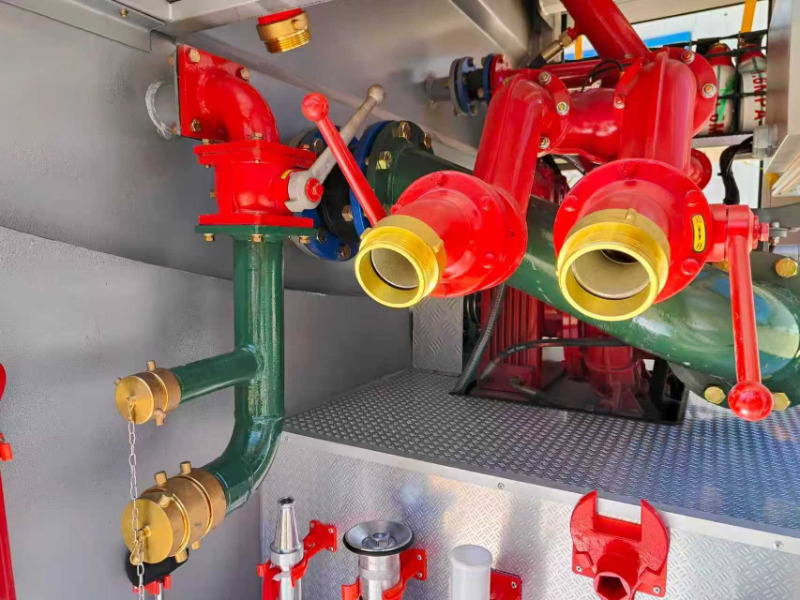

3. Discharge System	• Fire pump: High-efficiency, energy-saving multi-stage centrifugal pump, flow rate ≥40L/S • Fire monitor: Remote-controlled water/foam dual-purpose monitor, range ≥50 meters, adjustable angle • Supports connection to fire hoses and foam nozzles for flexible operations

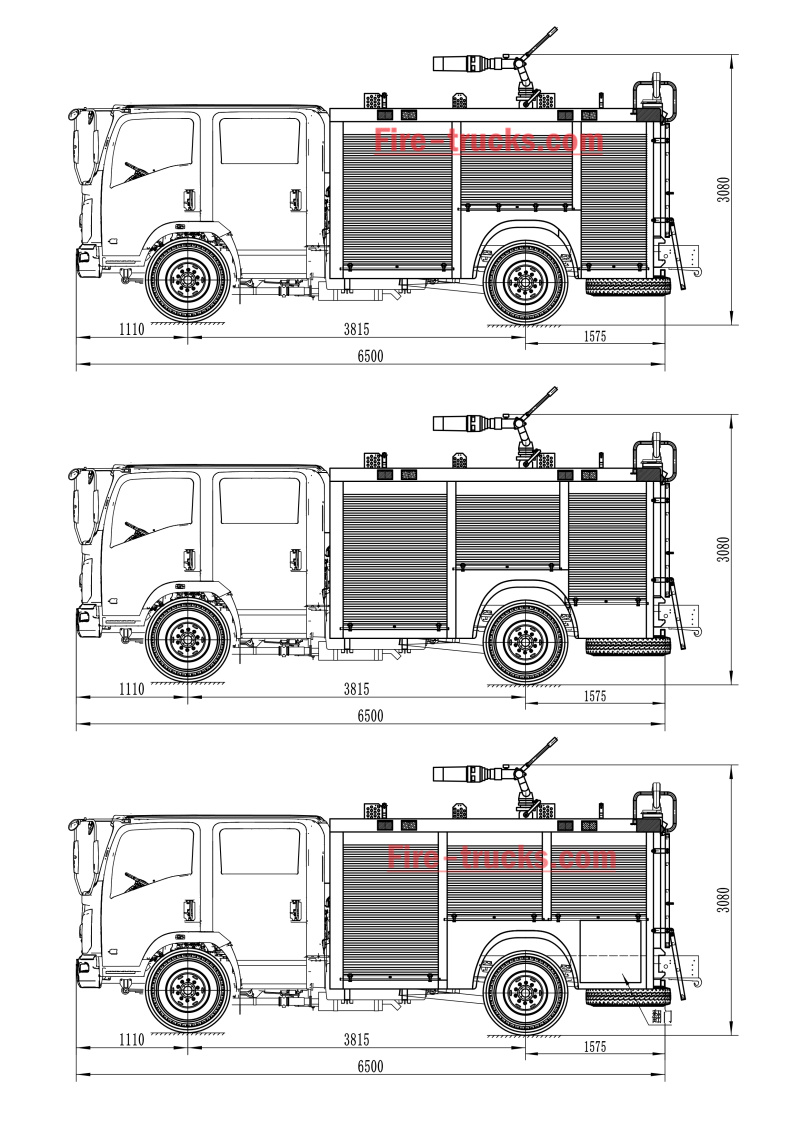

Isuzu fire fighting vehicle factory design drawing

Isuzu 700P Foam water Fire truck CAD drawing

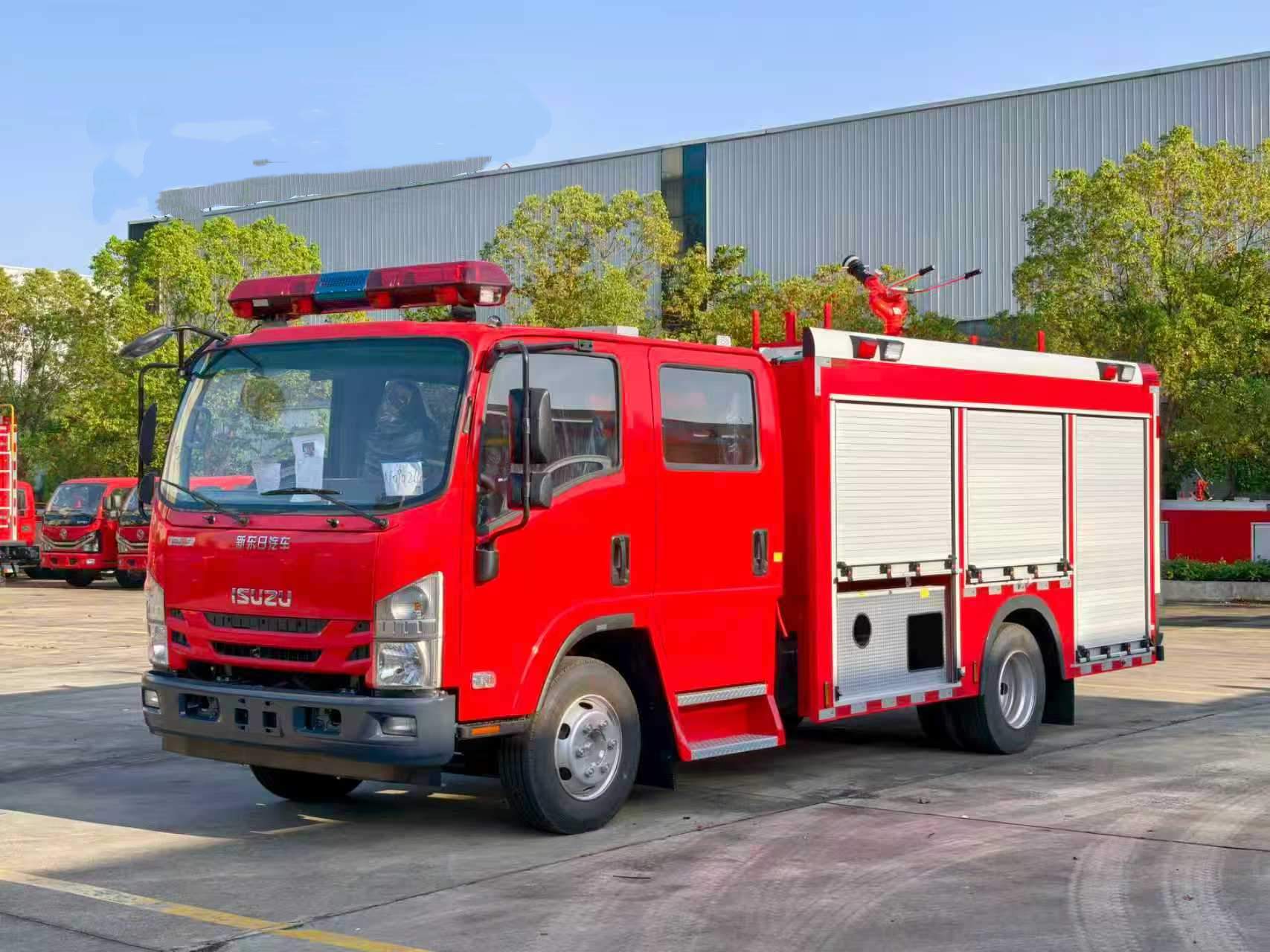

2026 NEW DESIGN OF ISUZU NPR Foam Fire Trucks

Application Scenarios & Advantages
Workshop oil spill fire	Highly suitable; foam rapidly smothers fire by oxygen isolation
Initial electrical equipment fire	Foam or combined dry powder can be used (ensure electrical insulation safety)
Solid material combustion	Water monitor can directly and effectively extinguish
Operation in water-scarce environments	Can serve as a water supply support vehicle, enabling long-distance water transfer
