During fire apparatus procurement, our customers typically prioritize chassis performance, fire pump flow and pressure ratings, and firefighting system configuration. However, the choice of fire truck water tank material is equally important, as it directly affects the vehicle's service life, corrosion resistance, maintenance cost, and long-term operational reliability.

Fire Truck Water Tank Materials Comparison Carbon Steel vs Stainless Steel vs Aluminum

As a professional fire truck manufacturer, we understand that water tank material selection is not merely a price comparison, but a comprehensive engineering decision. This article compares the three most common fire truck water tank materials—carbon steel, stainless steel, and aluminum—based on engineering requirements, real-world performance, and lifecycle cost.

I. Structure of a Fire Truck Water Tank

Before comparing materials, it is important to understand that a water tank is not simply a container for water. A modern apparatus water tank is a pressure-bearing and surge-suppressing structure integrated into the vehicle body. It must withstand fill pump pressure, water surge during braking and cornering, road vibration, and chemical attack from firefighting foam and reclaimed water.

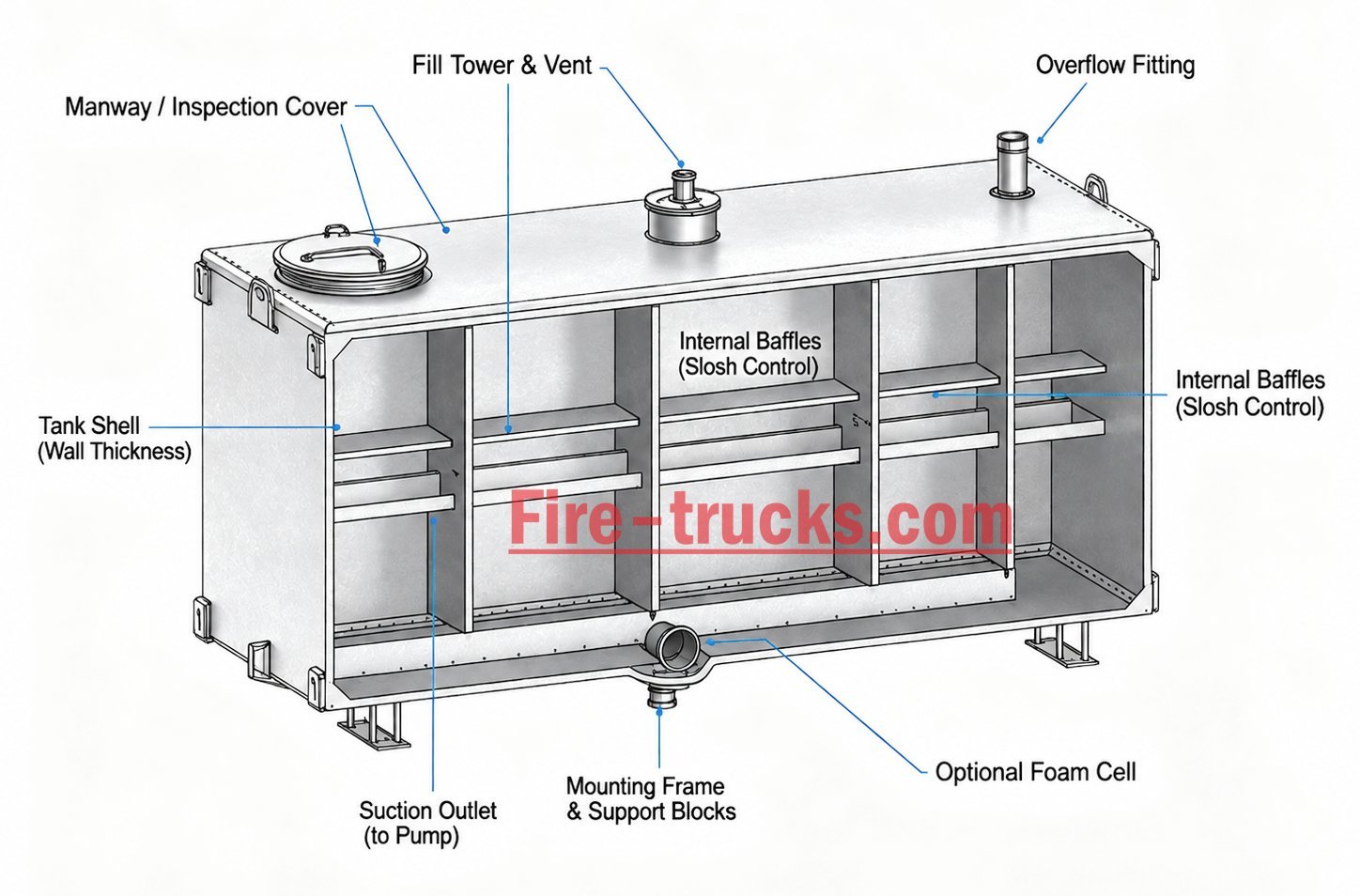

what is inside a fire truck water tank baffles manhole fill tower suction outlet diagram

Typical internal and external features include:

• Internal baffles — welded partitions that suppress water surge and stabilize vehicle handling

• Fill tower and vent — top fill opening with vent to prevent vacuum or pressure lock

• Manhole / inspection cover — sealed opening for personnel access for internal inspection and cleaning

• Pump suction port — connection that delivers water from the tank to the fire pump

• Overflow port — prevents over-pressurization during filling

• Mounting brackets and support blocks — isolate chassis twisting; slotted mounts allow thermal expansion and contraction

Water tanks are available in rectangular/T-shaped and elliptical configurations. Elliptical tanks have no sharp corners where welding stress concentrates, but they have a higher center of gravity and often require stainless steel cladding for appearance. Tank material is closely related to these features—welds, baffles, and connections—not just the exterior surface.

what are the different fire truck water tank shapes rectangular elliptical T-style comparison

II. Three Key Materials Used in Fire Truck Water Tanks

1. Carbon Steel

Typically Q235B or Q345R, with internal epoxy coating. High strength, mature welding processes, low cost, but requires regular coating maintenance and has a shorter service life (5–8 years).

• Lowest initial material and manufacturing cost

• Easy to weld, cut, and repair in the workshop

• Heaviest option, reducing payload capacity

• Requires internal and external coating (epoxy, galvanized, or paint)

• Coating damage leads to rapid pitting of bare steel

2. Stainless Steel

Typically SUS304 or SUS316L. Excellent corrosion resistance, long service life (15+ years), hygienic surface, but higher initial cost and requires careful welding practices.

• Self-repairing chromium oxide (Cr₂O₃) film

• No internal coating required

• Highest material cost

• Brushed or mirror finish suitable for exposed appearance

• Requires attention to cracking and microbiologically influenced corrosion

3. Aluminum

Typically marine-grade 5083 alloy. Lightweight (one-third the density of steel), naturally corrosion-resistant, excellent fatigue resistance, but lower strength and requires specialized fabrication.

• Density approximately one-third that of steel

• Natural Al₂O₃ film resists atmospheric corrosion

• Excellent strength-to-weight ratio, suitable for aerial ladders

• Galvanic corrosion risk when connected to steel fittings

• Lower impact toughness than steel

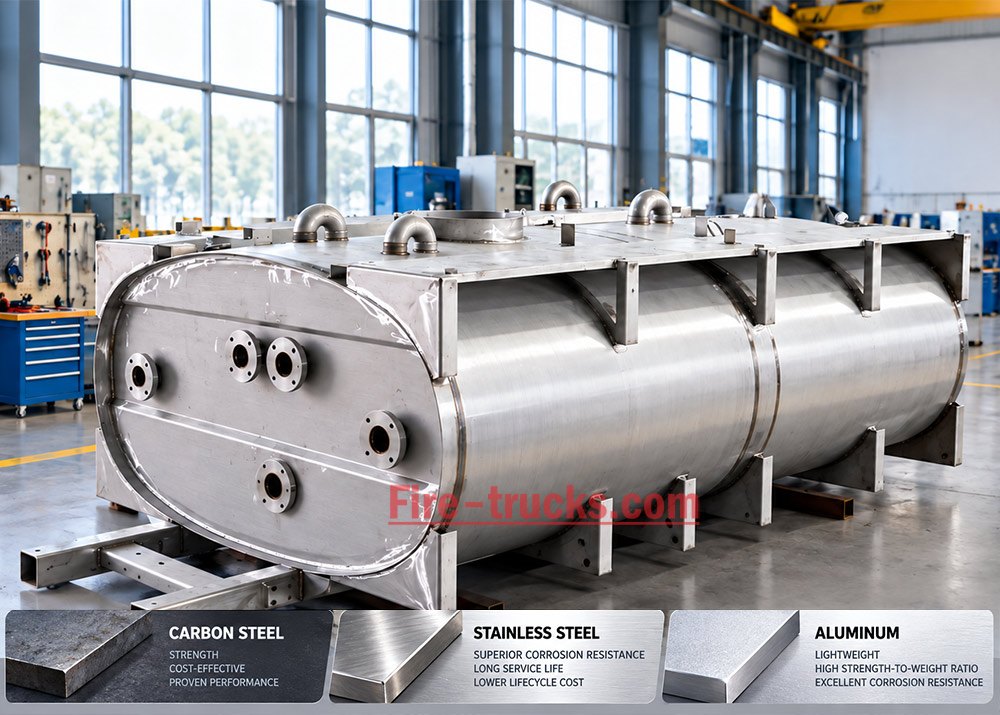

what is the difference between carbon steel stainless steel and aluminum fire truck tanks

III. Corrosion Resistance

The difference between the three materials is essentially a story of surface chemistry. The following describes what happens at the metal-water interface for each material.

Carbon steel: Bare carbon steel rusts rapidly when exposed to water. It must be protected by an internal anti-corrosion coating, typically epoxy resin or polyurethane. If the coating is scratched or degraded, the underlying steel corrodes, and rust particles can be washed into the fire pump and damage the impeller.

Stainless steel: Forms a passive chromium oxide layer that resists rust and chemical attack. SUS304 is suitable for freshwater storage, while SUS316L—containing molybdenum—offers superior resistance to chloride-induced corrosion, making it suitable for coastal areas or chlorinated water sources. However, if fabrication quality is poor, stainless steel can still corrode at weld seams and heat-affected zones.

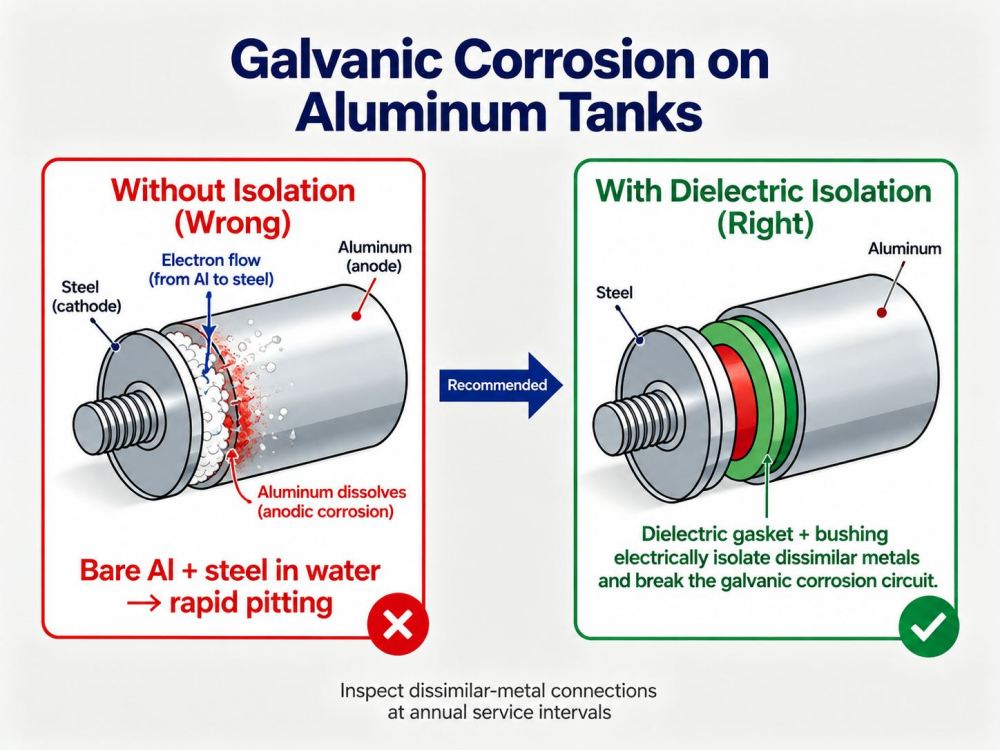

Aluminum: Forms a protective oxide layer that resists corrosion, eliminating the need for internal coating. However, when connected to dissimilar metals (such as steel or brass fittings), galvanic corrosion can occur. Cathodic protection and protective coatings are recommended at connection points.

How to prevent corrosion of aluminum tanks

IV. Mechanical Strength and Stiffness

Carbon steel: Offers excellent mechanical strength and stiffness, making it suitable for large-capacity tanks where structural rigidity is critical. Yield strength is typically around 350 MPa.

Stainless steel: Achieves a good balance between strength and corrosion resistance, with tensile strength typically around 540 MPa.

Aluminum: Has lower yield strength and tensile strength than carbon or stainless steel, which may limit its use in very large tanks or high-stress applications. Yield strength is typically around 275 MPa.

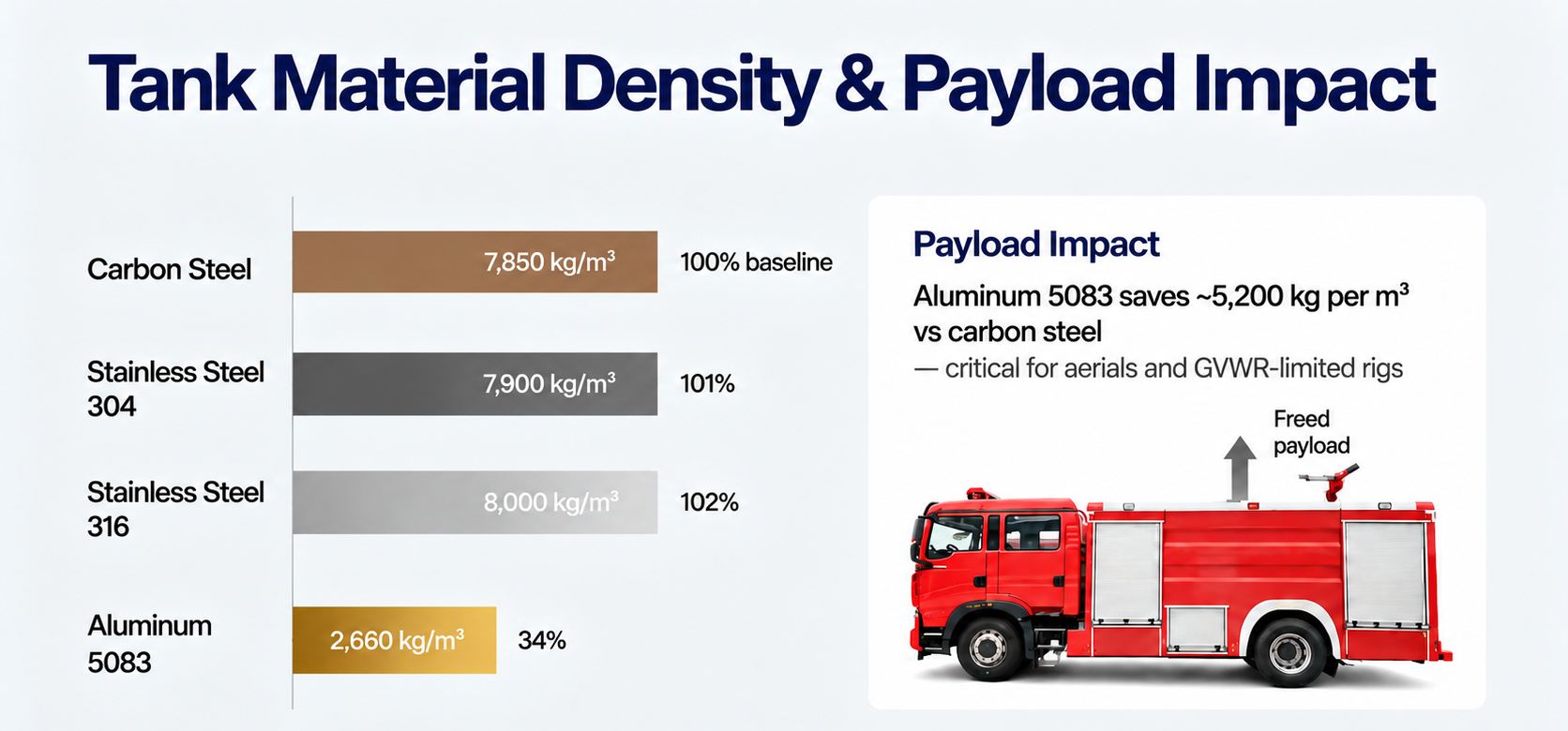

V. Weight and Payload Impact

Carbon steel: Density of 7.85 g/cm³. Heavy, but strength allows for thinner plates in some applications.

Stainless steel: Density of approximately 8 g/cm³. Similar weight to carbon steel.

Aluminum: Density of 2.7 g/cm³—roughly one-third that of steel. This directly translates to increased payload capacity or reduced fuel consumption, making it ideal for weight-sensitive applications.

how much weight does an aluminum fire truck tank save density and payload comparison

VI. Service Life and Maintenance

Carbon steel: 5–8 years with proper coating maintenance. Requires regular inspection (every 6 months) and coating repair. Shorter service life means higher replacement frequency.

Stainless steel: 15+ years with proper maintenance. Low maintenance burden. The smooth interior surface resists algae and bacterial growth.

Aluminum: 15–20 years in demanding environments. No internal coating required, but requires inspection of welds and dissimilar metal connections.

The choice of fire truck water tank material is not a simple price comparison, but a lifecycle cost decision based on water quality, operating environment, payload requirements, and maintenance capability.

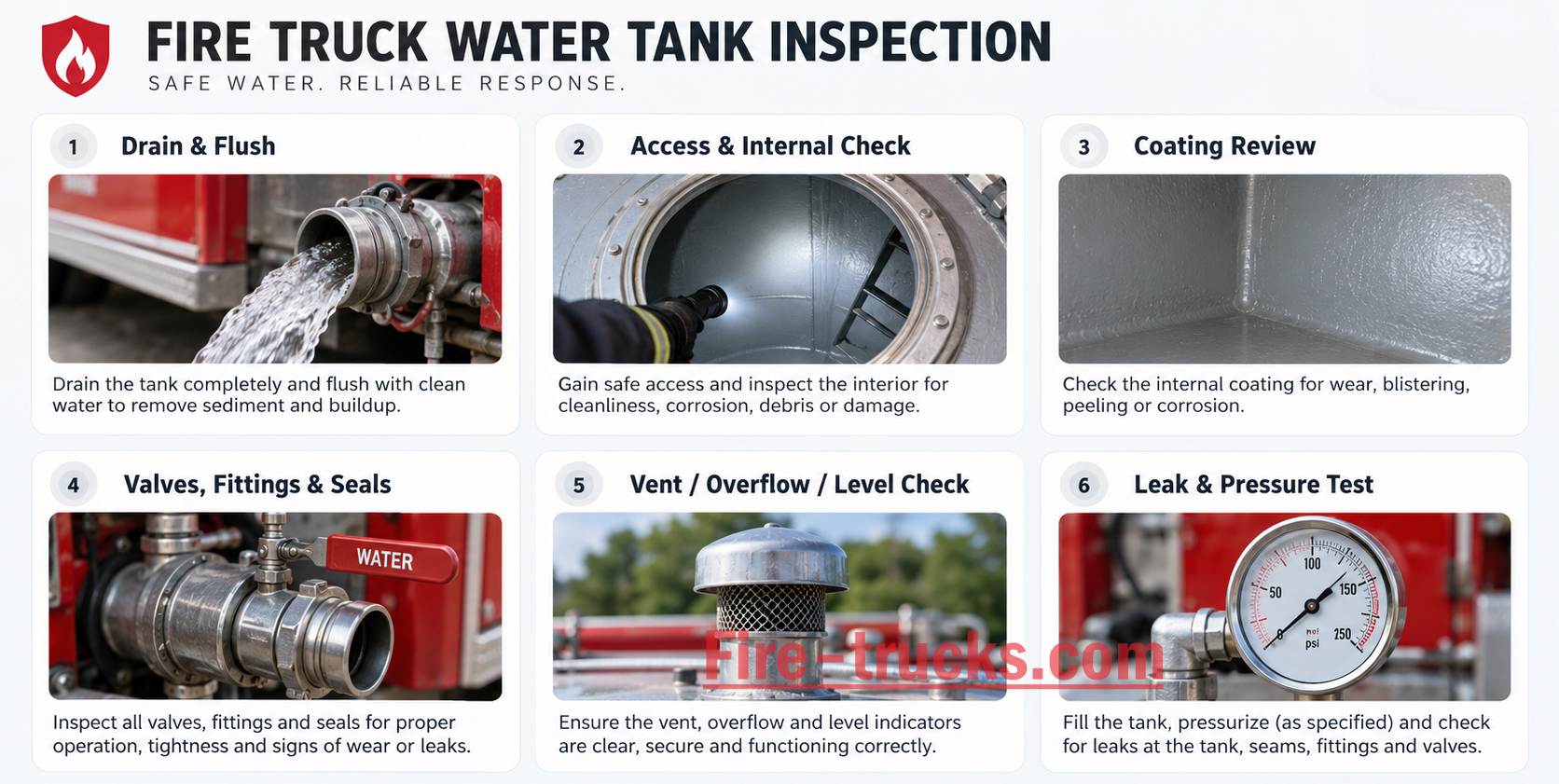

How to Maintain a Fire Truck Water Tank & Checklist

1. Drain all remaining water after each shift to prevent freezing cracks in winter.

2. Flush the tank and pipes immediately after using unclean water sources.

3. Check seals, tank leaks, and valve operation weekly.

4. Drain and remove sediment and scale from the tank monthly.

5. Clean the interior and inspect welds yearly; sand rust spots and apply epoxy resin paint.

6. Replace stored water regularly to prevent deterioration and corrosion.

How to Maintain a Fire Truck Water Tank & Checklist

VII. Fire Truck Tank Material Performance Comparison Table

Item	Carbon Steel	Stainless Steel	Aluminum
Cost	Low	High	Moderate
Weight	Heavy	Moderate	Lightweight
Corrosion Resistance	Fair	Excellent	Good
Strength	Excellent	Excellent	Good
Maintenance Requirement	High	Low	Moderate
Manufacturing Difficulty	Low	Moderate	High
Service Life	Moderate	Long	Long

Which Material Should You Choose?

• Choose carbon steel: For budget ground pumpers in dry inland climates, where the fleet has an active maintenance program and commits to annual internal inspection and coating repair.

• Choose stainless steel (304): For standard municipal apparatus requiring a coating-free, low-maintenance shell with a clean appearance; specify 316 for coastal, salt-spray, or chemical environments.

• Choose aluminum (5083): For aerial ladder trucks where every pound of tank weight saved translates into useful payload—provided that electrical isolation at all steel-aluminum connections is verified on the production line.

VIII. Frequently Asked Questions (FAQ)

Q1: How often should the inside of a water tank be inspected?

A: Coated carbon steel tanks should be inspected every 6 months, while stainless steel and aluminum tanks should be inspected annually. If natural water sources, foam concentrate, or coastal operations are common, the inspection interval should be shortened accordingly. Results should be recorded after each inspection to establish a maintenance file.

Q2: What is the difference between SUS304 and SUS316L for fire truck tanks?

A: SUS304 is suitable for freshwater storage and inland operations. SUS316L contains molybdenum, which significantly improves resistance to chloride-induced pitting corrosion. If you operate in a coastal environment or use high-chloride water sources, SUS316L is the better choice. For inland departments using municipal water, SUS304 is generally sufficient.

Q3: Do aluminum fire truck tanks need internal coating?

A: No. Aluminum naturally forms a protective oxide layer that resists corrosion, eliminating the need for internal coating. This is one of the main advantages of aluminum tanks—it removes the coating maintenance requirement that carbon steel tanks have. However, aluminum tanks still require isolation measures at dissimilar metal connections to prevent galvanic corrosion.

Q4: Which fire truck tank material is best for coastal areas?

A: For coastal areas, choose either stainless steel SUS316L or aluminum. SUS316L contains molybdenum, which resists chloride-induced pitting corrosion. Aluminum naturally resists salt spray corrosion and requires no internal coating. SUS304 should be avoided in coastal environments unless additional protective measures are taken, as chloride-rich air and water can cause pitting corrosion over time.

Q5: Why do stainless steel fire truck tanks sometimes rust?

A: Stainless steel corrosion typically occurs at weld seams, heat-affected zones, or areas contaminated with iron during fabrication. High-chloride water can also cause pitting corrosion. Proper welding (continuous, cleaned), surface protection during fabrication, and optional internal coating can prevent this. If you operate in a coastal area, specify SUS316L instead of SUS304 for better chloride resistance.

Q6: How long does a fire truck water tank last?

A: Service life depends on the material: carbon steel tanks last 5–8 years with proper coating maintenance; stainless steel tanks last 15+ years; aluminum tanks last 15–20 years. Actual service life is also affected by water quality, operating environment, and maintenance practices.

IX. Conclusion

Water quality → Operating environment → Payload priority → Maintenance capability → Material selection

• Carbon steel: Lowest upfront cost, high strength, but requires diligent coating maintenance and has the shortest service life (5–8 years)

• Stainless steel: Industry standard, excellent corrosion resistance, long service life (15+ years), low maintenance—the safest default choice for most fire departments

• Aluminum: Lightest option, natural corrosion resistance, excellent fatigue resistance—ideal for payload-sensitive, coastal, and high-duty applications
